Structural (GFC) Drawings Explained: What Each Sheet Means Before Work Starts

Quick answer: GFC stands for Good for Construction. GFC drawings are the final, approved set of drawings issued to the site after all architectural and structural revisions are closed. The structural set covers the foundation layout, column layout, beam and slab reinforcement, staircase and roof details and the bar bending schedule. It is the only set the contractor should build from.

Every successful construction project begins with clear and accurate drawings. Before work starts on-site, engineers issue GFC drawings to guide contractors through every stage of construction. These drawings ensure that the structure is built exactly as designed, minimizing errors, delays, and costly rework. At Walls and Dreams, every residential project is executed using well-prepared structural drawings so that homeowners can expect quality, precision, and long-term structural safety.

What Are GFC Drawings?

The full form of GFC in construction is Good for Construction. These are the final approved drawings issued after all architectural and structural revisions have been completed.

GFC drawings help:

  • Guide on-site construction.
  • Reduce execution mistakes.
  • Maintain structural accuracy.
  • Improve coordination between teams.
  • Ensure construction follows approved designs.

Once issued, these drawings become the primary reference for contractors and site engineers.

How Are GFC Drawings Different From Other Drawings?

A house goes through several sets of drawings. They look similar, but each has a different job, and only one of them is meant to be built from.

Drawing set What it is for Can the site build from it?
Concept or presentation drawings Agreeing the layout and look with the owner No
Sanction (submission) drawings Getting the building plan approved by the authority. They show areas, setbacks and heights, not construction detail. No
Tender drawings Letting contractors price the work No
Working drawings Detailed drawings that may still be under coordination and revision Only once released as GFC
GFC drawings The frozen, signed set issued to the site Yes
As-built drawings A record, made after construction, of what was actually built Not applicable

The usual site problem is a contractor starting work from the sanction plan or an early working drawing because the GFC set is not ready. Column sizes, footing depths and steel are often still changing at that stage.

Why GFC Drawings Are Important

Construction involves multiple teams working together. Without finalised GFC drawings, even small misunderstandings can lead to expensive delays.

Their key benefits include:

  • Clear construction instructions.
  • Better quality control.
  • Faster project execution.
  • Reduced material wastage.
  • Improved communication among stakeholders.
  • Consistent structural accuracy.

Using approved drawings helps avoid unnecessary site modifications during construction.

What Is Included in Structural Drawings?

A complete set of structural drawings contains detailed information required to build every structural element correctly.

Typical sheets include:

  • Foundation layout
  • Column layout
  • Beam reinforcement details
  • Slab reinforcement plans
  • Staircase reinforcement
  • Roof reinforcement
  • Bar bending schedule
  • Structural notes

Each drawing provides dimensions, reinforcement details, levels, and construction specifications needed for execution.

Understanding Each Major Drawing Sheet

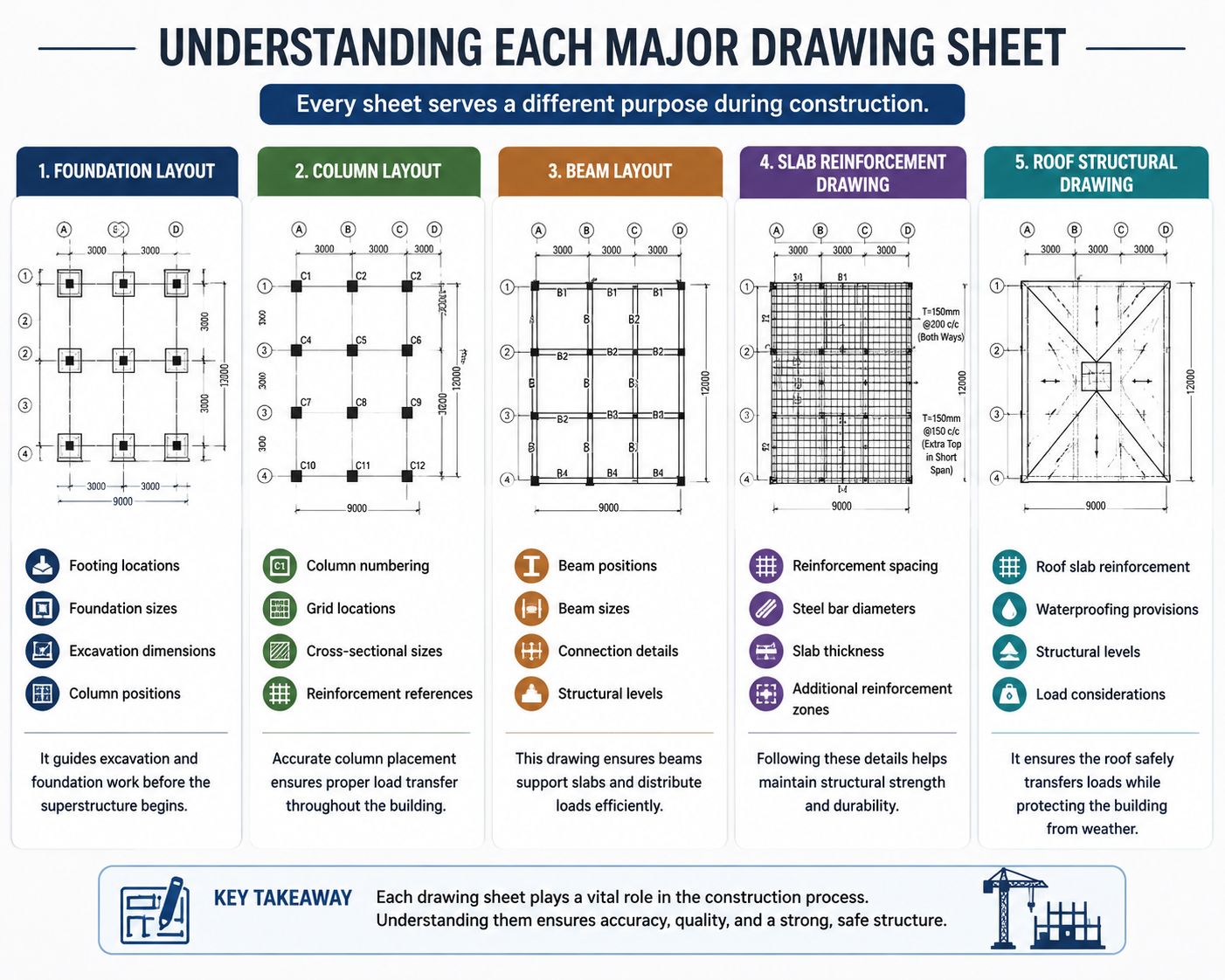

Understanding Each Major Drawing Sheet

Every sheet serves a different purpose during construction.

Foundation Layout

This drawing shows:

  • Footing locations
  • Foundation sizes
  • Excavation dimensions
  • Column positions

It guides excavation and foundation work before the superstructure begins.

Column Layout

The column layout identifies:

  • Column numbering
  • Grid locations
  • Cross-sectional sizes
  • Reinforcement references

Accurate column placement ensures proper load transfer throughout the building.

Beam Layout

The beam layout includes:

  • Beam positions
  • Beam sizes
  • Connection details
  • Structural levels

This drawing ensures beams support slabs and distribute loads efficiently.

Slab Reinforcement Drawing

The slab drawing specifies:

  • Reinforcement spacing
  • Steel bar diameters
  • Slab thickness
  • Additional reinforcement zones

Following these details helps maintain structural strength and durability.

Roof Structural Drawing

The roof drawing includes:

  • Roof slab reinforcement
  • Waterproofing provisions
  • Structural levels
  • Load considerations

It ensures the roof safely transfers loads while protecting the building from weather.

Staircase Reinforcement Drawing

The staircase drawing shows:

  • Thickness of the sloping (waist) slab
  • Riser and tread dimensions
  • Main and distribution bars, and where they bend at the landings
  • Landing beams and how the stair is tied into the floor slab

Staircase steel is easy to get wrong because the bars change direction at each landing, so this sheet should be on site when the stair is being tied.

Bar Bending Schedule (BBS)

The bar bending schedule is a table, not a drawing. For every bar in the structure it lists:

  • Bar mark and the member it belongs to
  • Diameter and shape
  • Cutting length
  • Number of bars and total weight

The steel yard cuts and bends from it, and the owner can use it to check how much steel should have been ordered and billed.

Structural Notes

The notes sheet applies to every other sheet. It states the concrete grade, the steel grade, the clear cover to reinforcement, lap lengths, curing requirements and when shuttering may be removed. If a detail drawing is silent on something, the answer is usually in the notes.

Common Mistakes When Reading GFC Drawings

Construction errors often occur when drawings are misunderstood or ignored.

Avoid these common mistakes:

  • Using outdated revisions.
  • Ignoring structural notes.
  • Modifying reinforcement without approval.
  • Changing dimensions on-site.
  • Skipping bar bending schedules.
  • Failing to coordinate architectural and structural drawings.

Following only the latest approved drawings reduces construction risks significantly.

GFC Drawings

Who Uses GFC Drawings?

Several professionals rely on GFC drawings throughout the project.

These include:

  • Structural engineers
  • Architects
  • Site engineers
  • Contractors
  • Supervisors
  • Steel fabrication teams

Each stakeholder uses the drawings to ensure every structural component is built according to the approved design.

Why Homeowners Should Understand GFC Drawings

Although technical details are handled by professionals, homeowners benefit from understanding the purpose of these drawings.

Basic knowledge helps you:

  • Track construction progress.
  • Ask informed questions.
  • Verify work quality.
  • Avoid unauthorized changes.
  • Understand project documentation.

Being aware of the drawing process creates better communication between homeowners and the construction team.

How to Tell Whether a Drawing Is the Current GFC

Every sheet has a title block, usually along the bottom or the right-hand edge. Before work is done from a sheet, check that the title block shows:

  • The project name and the sheet title
  • A drawing number
  • A revision number and date
  • The scale
  • The name and signature of the structural engineer
  • A “Good for Construction” stamp or status

When a drawing is revised, the changed area is normally marked with a cloud and the revision table records what changed. Keep a simple drawing register listing each sheet and its latest revision, and remove superseded prints from the site the day a new revision arrives. Two versions of the same sheet on site is how old details get built.

How Can a Homeowner Use GFC Drawings on Site?

You do not have to read every line. A few checks at the right moments catch most mistakes:

  • Before excavation: confirm the column grid marked on the ground matches the foundation layout.
  • Before every concrete pour: ask the site engineer to check the steel against the sheet for bar diameter, number of bars, spacing and cover, and to sign a pour checklist.
  • When a change is suggested on site: ask for it as a revised drawing from the engineer, not as a verbal instruction.
  • At handover: ask for a full set of the final drawings. They are needed for any future extension, extra floor or repair.

The earlier the architect and the engineer agree the layout, the fewer revisions the GFC set goes through. Our note on column grid planning explains why.

Conclusion

GFC drawings are more than technical documents—they are the blueprint for safe and accurate construction. From foundations and columns to beams and roof reinforcement, every sheet plays a vital role in ensuring the structure is built as intended. By following professionally prepared drawings, Walls and Dreams delivers homes with greater precision, improved quality, and long-term structural reliability.

GFC drawings are the end product of the structural design. See how that design is worked out in structural design for house construction, soil to roof, how steel and loads change for G+1, G+2 and G+3, the types of beams used in houses, the difference between one-way and two-way slabs, and why soil testing has to come before the foundation drawing. For architectural and structural drawings prepared by one team, see our architecture company page.

FAQs

What is the purpose of GFC drawings?

GFC drawings provide the final approved construction details that contractors and engineers use during project execution.

Can construction begin before GFC drawings are issued?

It is not recommended, as incomplete or preliminary drawings can lead to costly errors and delays.

Are GFC drawings different from architectural drawings?

Yes. Architectural drawings focus on layouts and aesthetics, while structural GFC drawings provide engineering details for safe construction.

Who prepares structural GFC drawings?

Qualified structural engineers prepare and approve these drawings after completing the structural design.

Can GFC drawings be changed during construction?

Changes should only be made after review and approval by the project engineers to maintain structural safety and design integrity.

What is the difference between working drawings and GFC drawings?

Working drawings are detailed drawings that may still be under coordination and revision. GFC drawings are the same sheets after every revision is closed, signed by the engineer and formally issued to the site for construction.

What is a bar bending schedule?

A bar bending schedule is a table that lists every reinforcement bar with its mark, diameter, shape, cutting length, quantity and weight. It is used to cut and bend the steel and to check the quantity of steel ordered and billed.
