Two essential structural components used during construction in sloped and metal roof applications are purlins together with rafters. Roofs utilize purlins together with rafters but these structural members demonstrate distinct attributes about their support function and construction features. This article provides full details about purlins and rafters through explanations of their single purposes and cooperative work along with their rooftop structural distinctions.
What is a Rafter?
The sloping structural beam which makes up the essential roof framework is termed “rafter.” The structure supports roofing material through beams extended from roof peak points to eaves points.
Key Features of Rafters:
- Slope: The roof pitch determines an optimal slope for rafters to control water drainage and rooftop appearance.
- Primary Support: The main carrying capacity of rafters consists of supporting roofing materials along with effects of snowfall and rain and wind pressure.
- Material: Rafters are commonly made from wood in residential construction. However, rafters in steel structure setups are becoming more common in industrial and commercial buildings.
How Rafters Work:
Rafter beams are typically installed parallel to one another and spaced uniformly. They are attached to a ridge board at the top and a wall plate at the bottom. In doing so, they create a strong, triangular shape that distributes loads evenly to load-bearing walls or columns. Without rafters, the structural stability of sloped roofs would be compromised.
What is a Purlin?
The horizontal purlin is installed perpendicular to rafters as a structural element. The purpose of roof purlins differs from rafters because they enable roofing material support and reinforce rafter structures.
Key Characteristics of Purlins:
- Position: Installed across the rafters horizontally.
- Secondary Support: Offers extra reinforcement to both rafters and the roof covering.
- Materials: Common materials include wood, steel, and aluminum, especially for purlin in truss systems.
How Purlins Work:
Purlins spread the weight of roofing materials (including metal sheets or tiles) across multiple wide areas. Purlins serve a vital function by maintaining the stability of large-span roofs that roof sheets would otherwise not support. The roofing system becomes strong and stable when purlins combine their efforts with rafters.
Key Differences Between Purlins and Rafters
The sloped roof depends on purlins and rafters yet the two components function differently in this roofing construction. Your construction needs an appropriate framework which becomes possible through understanding the differences between purlins and rafters.
| Feature | Rafter | Purlin |
| Primary Function | Main support for the roof structure | Secondary support for rafters and roofing material |
| Installation Position | Sloped from ridge to eaves | Horizontal, across rafters |
| Material Options | Mostly wood or metal in steel structures | Wood, steel, or aluminum |
| Structural Role | Carries the bulk of the load | Distributes weight across roof area |
| Necessity | Essential for most sloped roofs | Optional, depending on material and span |
| Cost | Higher due to size and load-bearing requirements | Lower, but adds cost in large roofs |
| Common Uses | Residential buildings, cabins | Warehouses, barns, commercial steel structures |
Comparison Table: Purlins Versus Rafters
| Aspect | Rafters | Purlins |
| Function | Supports the main roof load | Supports roofing material and assists rafters |
| Orientation | Diagonally placed from ridge to wall | Horizontally across the rafters |
| Use Case | Homes, cottages, small buildings | Large-span buildings, factories, sheds |
| Material | Wood, steel | Steel, wood, aluminum |
| Cost Impact | Higher in small buildings | Adds structural value in large structures |

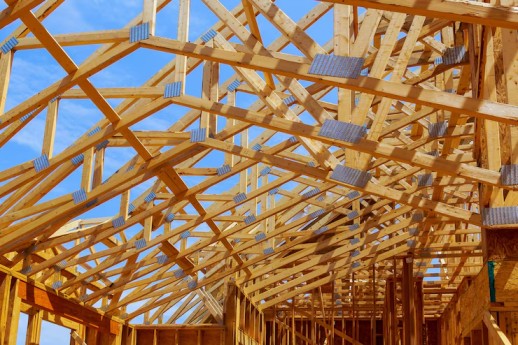

Framework of Rafters and Purlins
In many modern buildings especially those with larger roof spans or lighter roofing materials like tiles or sheets both purlins and rafters are used together. For instance, in a rafter in steel structure, metal purlin rafters reinforce the roof, preventing sagging and distributing loads more effectively.
Imagine a simple sloped metal roof in a barn: the rafter beams handle the main structural load, while roof purlins support the sheets, making sure they don’t buckle under environmental stress.
Conclusion
The building process requires purlins together with rafters although they work in distinct supporting functions. Rafters function as the structural members of roofs since they carry loads down to walls or columns. The main function of purlins is to distribute loads by providing horizontal support which enables rafters to carry their portion of the load.
Your ability to choose design options correctly for roof construction depends on understanding how purlin components differ from rafter elements in order to build safer structures that last longer.
At Walls and Dreams, we specialize in delivering expert roofing solutions tailored to your construction needs. Our team ensures your roof framework—be it purlins, rafters, or a combination of both—is built to perform and endure. Trust us to turn your architectural vision into a strong and reliable reality.
FAQs
1. A rafter exists to transmit loads from the roof to the supporting vertical elements.
The role of a rafter consists of supporting both the roof structure as well as its weight together with environment forces which include wind pressure and rain as well as snow accumulation.
2. Why would one use purlins?
The main function of purlins is to strengthen both roofing materials and aid rafter load distribution when dealing with extensive roofing spans.
3. The combination of purlins with rafters in construction is possible for building projects.
Both purlins and rafters combine to build strong durable roof systems particularly when used in metal or commercial buildings.
4. What is a rafter beam made of?
Rafter beams can be made of timber in traditional homes or steel in modern, larger structures.
5. Do all roof types require purlins?
Not always. Smaller roofs with large roofing materials like metal sheets may not need purlins, but they are essential in purlin rafter systems for larger constructions.
